主要用途与详细介绍/ Brief Introduction：

本加工线由全全自功理瓶机、滚筒机式洗瓶机、紫外线灯消毒干机、眼药液灌装设备生產线旋盖机、立试贴标签签空调机组成，可全部理瓶、水、气的的清洗、烘烤及三氧紫外线灯消毒、灌装设备生產线、加塞、旋盖、贴标签签等繁琐流程，具体用作眼药液以至于他小分子量悬浊液的联线加工，也可单人自己使用的。全部合适GMP规范要求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特色/Characteristic：

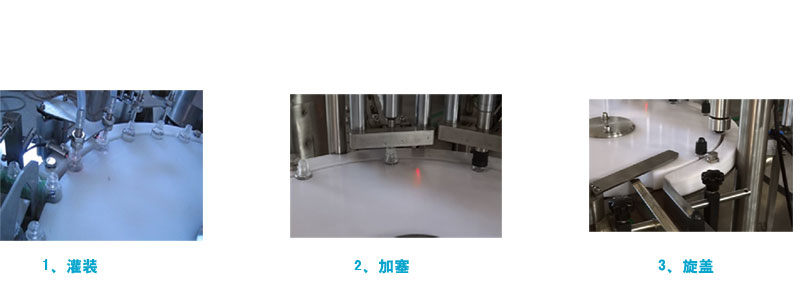

该机组设计制作节构合情合理，运动保持稳定、罐装准确高，具内部竞品业先进的总体水平。齐全贴合GMP标准单位。     眼药液包装旋盖机超出了我厂家的一代品牌，组队操作界面操纵，消化吸收泵包装，由蒸空吸智能化机器手臂当做汽缸最佳的打塞，保护了相对稳明确和不成品率。适用恒扭距旋盖，有无瓶不包装、无塞不上盖，无瓶无塞可智能停止时的性能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技艺产品参数/technical parameters：

应用型号规格/Bottle size	10-20ml
制作本事/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用清水的压力/ Hydraulic Pressure Mpa	0.3Mpa
需要用排水量 /water consumption	0.5 m3/h
洁净车间压缩的热空气经济压力 /Clean compressed air pressure	0.6-0.8Mpa
干净再压缩气体容量/Clean compressed air consumption	300 L/min
电源开关/Voltage	380V/50Hz
工作电压/Power	5.5 kw
产量线总长/Dimension	11000*1500*1900mm
